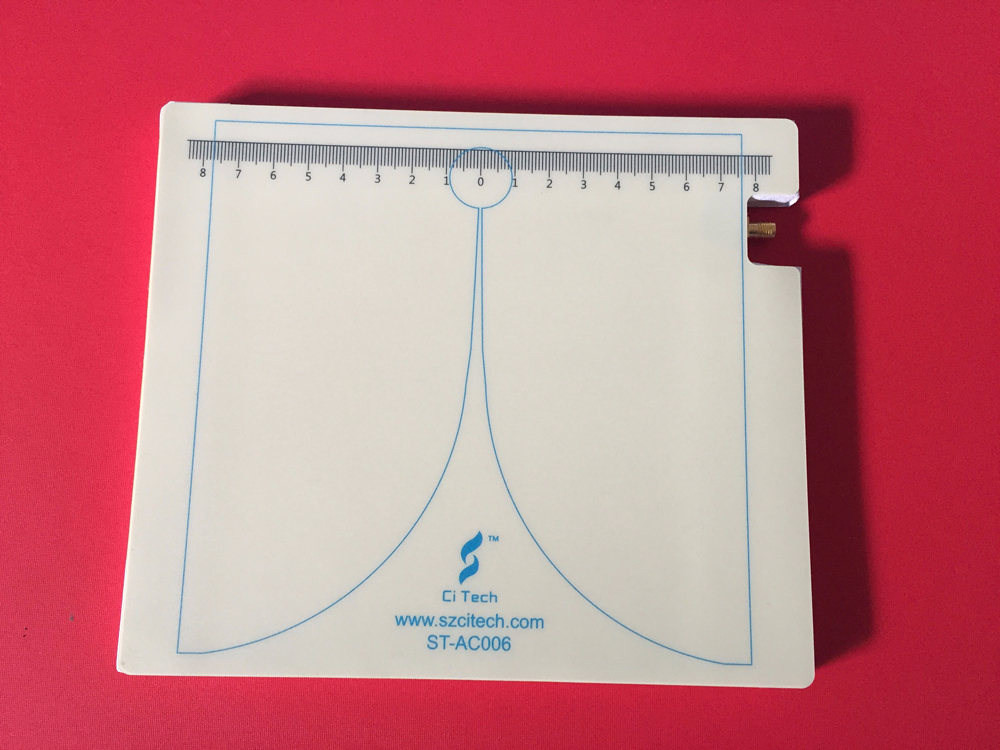

The feeding line excites a circular space via a microstrip line, terminated with a sector-shaped area. From the circular resonant area the energy reaches an exponential pattern via a symmetrical slot line.

Vivaldi antennas can be made for linear polarized waves or – using two devices arranged in orthogonal direction – for transmitting / receiving both polarization orientations.

If fed with 90-degree phase-shifted signals, orthogonal devices can transmit/receive circular-orientedelectromagnetic waves.

Vivaldi antennas are useful for any frequency, as all antennas are scalable in size for use at any frequency. Printed circuit technology makes this type antenna cost effective at microwave frequencies exceeding 1 GHz.

Advantages of Vivaldi antennas are their broadband characteristics (suitable for ultra-wideband signals^[1]), their easy manufacturing process using common methods for PCB production, and their easy impedance matching to the feeding line using microstrip line modeling methods.The MWEE collection of EM simulation benchmarks includes a Vivaldi antenna

 frequency  VSWR：

700mhz    2.40

800mhz    2.20

900mhz    1.48

1800mhz   1.15

2100mhz   1.50

2400mhz   1.38

5200mhz   1.50

5800mhz   1.29
